|12PRO: Two-Post Lift

The |12PRO is another robust addition to Forward Lift’s full line of two-post lifts. With a 12,000-pound lifting capacity and two heavy-power push hydraulic cylinders, the ALI-certified |12PRO is an absolute must-have for any garage or service center looking to raise passenger cars, trucks, and vans with increased speed.

Lift Features & Safety

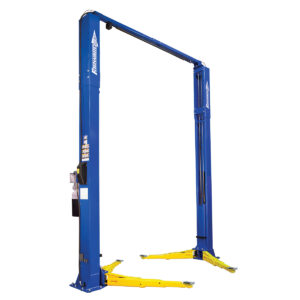

Forward Lift's |12PRO 12k two-post automotive lift

Features & Safety

With each new product, Forward Lift sets a new standard for performance and functionality.
|12PRO features a symmetrical column design with three-stage front and rear arms. The lift’s cylinders are concealed within each column, and the lift comes with four low-profile, rubber-padded drop-in adapters and three variations of height extensions (1.75 inches, 3.5 inches, and 5 inches) to meet different ceiling height requirements.

  • Single-Point Lock Release
  • Equalized Overhead Cable
  • Spring-Operated Arm Restraints
  • Built-in Adapter Storage
  • Durable Powder Coat Finish

Specifications

General specifications for the SPO10 series (without SHOCKWAVE™) include:

  • Lift Capacity: 12,000 lbs (5,443 Kg)
  • Maximum Height With 5-Inch Extension: 80.75 in. (2,051 mm)
  • Four Heights Options
    • I12N300 (Standard): 166 in. (4,216 mm)
    • I12N301 (Maximum Height): 178 in. (4,521mm)
    • I12N302: 154 in. (3,912 mm)
    • I12N303: 143 in. (3,632 mm)
  • Overall Width: 140 in. (3,556 mm)
  • Drive-Through Clearance: 108.75 in. (2,762 mm)
  • Overhead Switch Height Options:
    • I12N300 (Standard): 160.125 in. (4,067 mm)
    • I12N301 (Extended): 172.125 in. (4,524 mm)
    • I12N302: 148.125 in. (3,762 mm)
    • I12N303: 137.125 in. (3,483 mm)
  • Front Reach:
    • Minimum: 27.75 in. (705 mm)
    • Maximum: 59 in. (1,460 mm)
  • Rear Reach:
    • Minimum: 27.75 in. (705 mm)
    • Maximum: 59 in. (1,460 mm)
  • Adapter Height:
    • Without Extension: 4.75 in. (121 mm)
    • With 5-Inch Extension: 9.75 in. (248 mm)
  • Width Between Columns:
    • Adjustable: 120.875 in. (3,070 mm)
    • Standard: 14.875 in. (2,918 mm)
  • Voltage/Amps: 208V/230V, 17 amps
  • Motor/Phase: 1ph/2HP/50Hz; 1ph/2HP/60Hz
  • Ceiling Height Required: 168 in. (4,267 mm)
