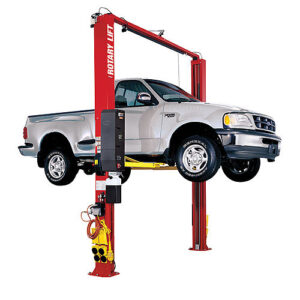

SPO10: Two-Post Lift

Features & Safety

• Fully Customizable: Rotary’s SPO10 lift series comes with customizable arm configurations and adapter types and is available in many heights.
• High-Strength Adapters:Rotary’s high-strength flip-up adapters require only a single pin for the entire assembly, while their TA and RA adapters are easily positioned and include a high-quality, durable padded polymer for superior grip.
• Optional SHOCKWAVE™ DC Power: The optional SHOCKWAVE™ feature provides rise and decent speeds twice as fast as conventional automotive lifts.
• Spotline™ Motion Activated Laser: Rotary’s exclusive Spotline™ Motion Activated Laser offers exceptional vehicle spotting assistance.

Specifications

Rotary’s SPO10 lift models include two-stage arms with three-position flip-up FA adapters (SPO10), two-piece, three-stage arms with exclusive FA three-position adapters (SPO10 Trio™), and conventional three-stage arms with threaded-up padded TA (SPO10TA) and RA (SPO10RA) adapters.

General specifications for the SPO10 series (without SHOCKWAVE™) include:

• Overall Height: 11 Ft. & 8.5 in.
• Overall Width: 22 Ft. & 5.625 In.
• Drive-Thru: 102.5 In.
• Inside Columns: 114.75
• Minimum Bay Size: 12 x 24 Ft
• Ceiling Height Minimum: 12 Ft.
• Motor/ Voltage: 2 HP, 208 to 230V
• Full Rise Time: 45 Seconds
• Full Descent Time: 40 Seconds
