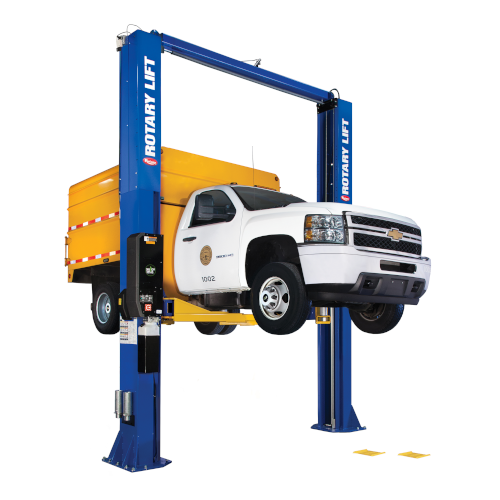

Rotary SPO20 Two-Post Lift

Lift Features

Rotary’s SPO20 two-post lift is loaded with innovative features, including:

• Trio™ 3-Stage Arms With Multi-Position Adapter Slider: The Trio™ allows you to experience three stages of flexibility while making spotting safer, simpler, and faster. The adapter adjustment slider glides easily into position—your technicians will appreciate never again having to reposition heavy inner arms.
• Shockwave™ (optional): This Rotary-exclusive technology is designed for shop owners and managers who need the speediest lifting and lowering times possible. Shockwave™ allows operators to lift vehicles twice as fast as standard vehicle lifts.
• Spotline™ Motion-Activated Laser: This brilliant feature comes standard on Rotary lifts equipped with Shockwave™. The top-mounted laser projects a bright green line on the vehicle’s center, allowing a single operator to position vehicles in bays for servicing properly.
• Symmetrical Design: The SPO20’s symmetrical two-arm design improves vehicle access, making servicing easier than ever. Plus, the SPO20 features the original “Double S” column design, improving column strength.
• Adjustable: You can adjust this lift for standard and low-ceiling bays.

Specifications

• Lift Capacity: 20,000 lbs.
• Maximum Load (Per Arm): 5,000 lbs.
• Truck Adapter Height:
  • 77.96875 In. (Minimum)
  • 80.03125 In. (Maximum)
• Overall Height:
  • 15 Ft. to 16 Ft. 6 In. (Standard Adjustments)
  • 13 Ft. 6 In. to 14 Ft. 6 In. (Low Ceiling)
• Overall Width:
  • 12 Ft. 11 In. (Narrow)
  • 13 Ft. 5 In. (Standard)
  • 13 Ft. 11 In. (Wide)
• Drive-Thru Clearance:
  • 105.34375 In. (Narrow)
  • 111.34375 In. (Standard)
  • 117.34375 In. (Wide)
• Floor to Overhead Switch: 15 Ft. 10.8125 In.
• Front & Rear Arm Reach:
  • 34.6875 In. (Minimum)
  • 64 In. (Maximum)
• Motor/Voltage:
  • 4 HP, 208 to 230V (Standard)
  • 5 HP, 110V (With Shockwave™)
• Full Rise Time:
  • 81 Seconds (Standard, at Full Capacity)
  • 60 Seconds (With Shockwave™, at Full Capacity)
  • 36 Seconds (With Shockwave™, at Half Capacity)
• Time of Descent: 20 Seconds
• Ceiling Height Required:
  • 15 Ft. 2 In. to 16 Ft. 8 In. (Standard)
  • 13 Ft. 8 In. to 14 Ft. 8 In. (Low Ceiling)
• Minimum Bay Size: 15 Ft. x 30 Ft.
